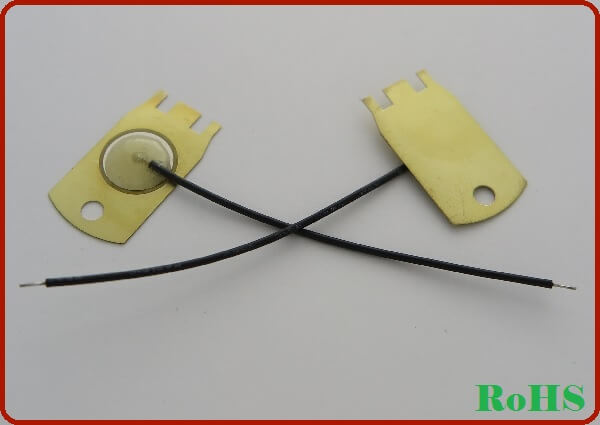

S1-C
Add to inquiry box
Production information
Features
- Low cost
- Low Power consumption
- Stable Output
Applications
- shock sensor by Car
- Vibration sensor of Machine
Specification
| S1-C | Piezoelectric transducer |
| Center Frequency | 9.0KHz±1KHz |
| Capacitance at 1KHz ± 20% | 14000 pF |
| Wire Color | Black |
| Wire Length | 50~60mm |
| Operation Temperature | -20 to 70° C |
| Storage Temperature | -40 to 80° C |
Outline Dimension
