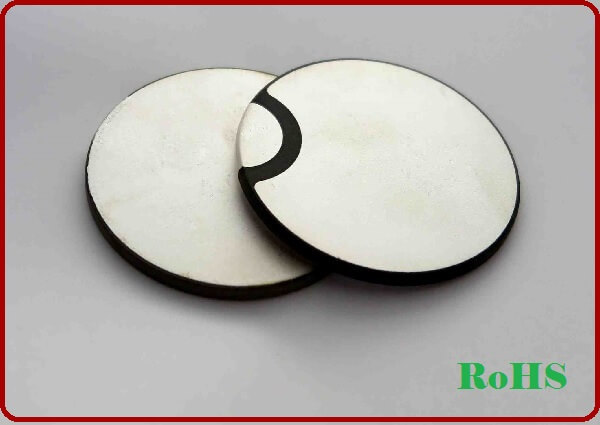

D5030S3
Add to inquiry box
Production information
Features
- Low Power Consumption
- Low heat
- High Power Efficiency
- Stable Output
Applications
- Ultrasonic Cleaner
- Ultrasonic Beauty Head
- Vibration System
Specification
| D5030S3 | Piezoelectric disc |
| Center Frequency | 45.5KHz±3% |
| Capacitance at 1KHz ± 15% | 6500 pF |
| Coupling Factor Kp | 0.55 min. |
| Piezoelectric Constant, d33(pC/N) | 320 min. |
| Dimension Unit | mm |
| Dimension Tolerance | By customer is available |

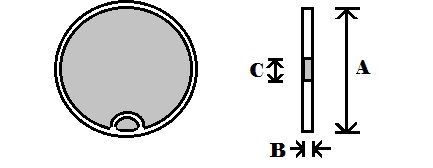

Outline Dimension
A=49.6±0.4
B=3.0±0.15
C=8
B=3.0±0.15
C=8
